Motion Sensors

Motion sensors are ideal for security, and they are also a great way to save energy.
They provide many advantages:
  • Safety
  • Convenience
  • Energy Savings
  • Crime Deterrent
  • Residential and Commercial Applications
  • Many Indoor and Outdoor Uses
  • Can be mounted near or away from fixtures
  • 600 Watt Switching Capacity
  • No Minimum Load Requirement
  • Built-in Surge Protection
  • UL Raintight

Motion sensors can keep lights off when they're not needed.

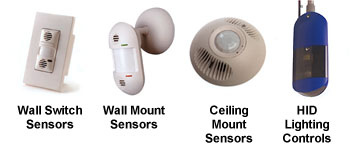

Here's some information on the different types of motion sensors we carry:

UNENCO Lighting Controls
Pioneering Advanced Lighting Technology

Since 1987, UNENCO has pioneered the use of advanced technology to design and manufacture solution-driven, energy saving products. UNENCO includes a full line of lighting controls. The comprehensive array of lighting control products also includes touch, toggle, rotary, and slide dimmers.

Today, as when it began, UNENCO remains committed to the product quality, innovation, and exceptional service that define it as a performance leader. That committment also ensures that UNENCO's advanced electronic products incorporate the technologies required to satisfy the global concern for energy conservation. Energy conserving products include photosensitive devices that use available daylight to reduce energy costs. Our Light Loggers are specifically designed to record light and occupancy use data that can be analyzed for potential energy savings.

Occupancy Sensors
Potential Savings From Occupancy Sensors

The EPA has conducted an independent, large-scale study of 171 sites across the United States. It has learned that occupancy sensors would save the following amounts of lighting electricity in the areas surveyed. Savings will range from 30 cents per square foot to more than 50 cents per square foot. The return on investment is likely to be more than 40 percent per annum and can be up to as much as 100 percent.

Passive Infrared Occupancy Sensors
Proven Quality - Advanced Technology

Passive infrared sensors monitor a specific area for a moving heat source such as the human body. PIR sensors use a multi-segmented lens to divide the space into zones. When a person enters the sensor field of view, the Fresnel™ lens focuses the IR energy emitted by the human body onto a pyro-electric detector. When that IR signature moves between zones the sensor interprets this movement as occupancy and turns on available lighting. PIR technology provides excellent motion detection but is subject to line of sight and is less sensitive to minor motion than ultrasonic.

Ultrasonic Sensors
Proven Reliability - Ultrasonic Technology

Ultrasonic sensors utilize a volumetric sensing technology to monitor a specific area. Transducers emit an inaudible wave pattern at a specific frequency filling the space and bouncing off all surfaces in the coverage area. This bouncing characteristic of the sound waves allows the sensor to detect motion around corners and behind partitions. When a person enters the sensor's coverage area the motion causes the emitted sound wave's frequency to change. The sensor detects this change and interprets it as occupancy turning on available lighting. Ultrasonic technology provides excellent motion detection and is not subject to line of sight restraints, allowing for superb minor motion coverage. Ultrasonic sensors are ideal in areas with partitions or where line of sight to sensor is blocked.

Multi-Technology Sensors
Exceptional Performance - Dual Technology

Multi-technology sensors incorporate both PIR and ultrasonic technologies into one compact device. By utilizing both technologies the strengths of one compensate for the weaknesses of the other. Multi-technology sensors provide superior occupancy detection in areas where a single technology sensor would not. Multi-technology sensors solve the challenges of complex environments by providing the superior minor motion detection provided by the ultrasonic and the excellent long-range detection offered by passive infrared.



Back to top

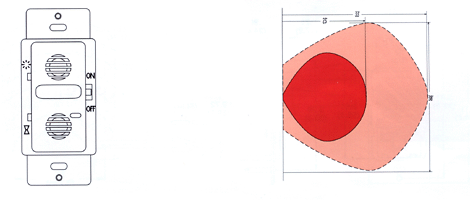

Wall Switch Sensors

UNENCO wall switch products lead the industry with critical design patents for wall switch power supply and the Zero Arc Point Switching (ZAPS) circuit. ZAPS prolongs contact and product life by eliminating the in-rush from today's highly efficient electronic ballasts. All UNENCO wall switch products have 180 degree fields of view and are ideal for new or retrofit applications. Designed for enclosed offices, rest rooms, conference rooms, storage closets and areas up to 1200 sq. ft., it takes less than 10 minutes to replace a 2-wire toggle switch with a UNENCO wall switch sensor.

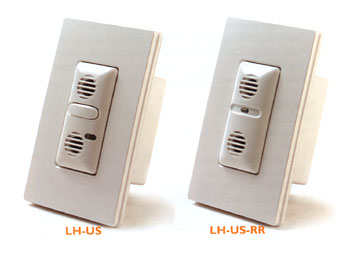

LightHAWK™LH-US/LH-US-RR
Intelligent Self-Adjusting Ultrasonic

Application:
A full adaptive ultrasonic sensor with full auto adjustment sensitivity and timing adjustment, eliminate all adjustments. LH-US-RR is the only sensor specifically designed for restrooms.

Key Features:

  • Full Adaptive Technology: Self adjusting, Self calibrating sensitivity and timing

  • 1000 sq. ft. coverage

  • Field of view: 180o

  • Dual Voltageó120/277V AC, 60Hz

  • Wattage: 120V AC-25 to 600W, 277V AC-60 to 1200W incandescent and ballast

  • Adaptive timing: 4 to 32 minutes (20 minutes defaultóRestroom sensor only.)

  • Adaptive sensitivity: 0 to 100% (initial setting 75%)

  • Zero Arc point switching

  • Operating temperature: 32o to 104oF (0o to 40oC)

  • Ultrasonic operating frequency: 40kHz

  • LED motion indicators: Green – ultrasonic

  • LH-US-RR: no manual override

  • Five year limited warranty

Models
Cat. No.
Color
Coverage
Recommended
Application
LH-US-W
White
1000 sq. ft.
Office
LH-US-I
Ivory
1000 sq. ft.
Office
LH-US-RR-W
White
1000 sq. ft.
Restroom
LH-US-RR-I
Ivory
1000 sq. ft.
Restroom

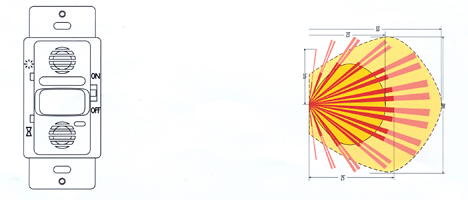

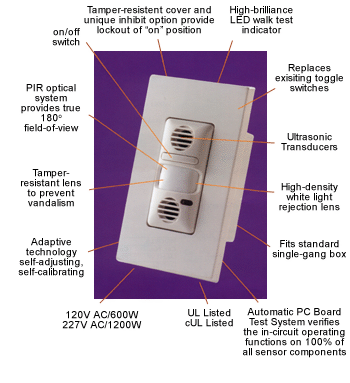

LightHAWK™LH-MT/LH-MT-HL
Intelligent Self-Adjusting Multi-Technology

Application:
Multi-technology wall switch combining PIR and ultrasonic sensing technology. Full auto adjustment sensitivity and timing adjustment eliminates all adjustments and creates the best sensor for priviate office control. Programmable ON/OFF push button control options include: Auto ON/Auto OFF or Manual ON/Auto OFF.

Key Features:

  • Full Adaptive Technology: Self adjusting, Self calibrating sensitivity and timer

  • Microprocessor controlled

  • 1000 sq. ft. coverage

  • Field of view: 180o

  • Dual Voltageó120/277V AC, 60Hz

  • Wattage: 120V AC-25 to 600W, 277V AC-60 to 1200W incandescent and ballast
    277V AC-60 to 1200W.

  • Adaptive timing: 4 to 32 minutes

  • Adaptive sensitivity; 0 to 100% (initial setting 75%)

  • Automatic setup
    Photocell—30–300FC

  • Zero Arc point switching
    - Auto ON/Auto OFF
    - Manual ON/Auto OFF

  • Operating temperature: 32o to 104oF (0o to 40oC)

  • Ultrasonic operating frequency: 40kHz

  • Multi-segment IR lens

  • One high sensitivity pyro-electric detector

  • LED motion indicators: Green – ultrasonic, Red – PIR

  • Five year limited warranty

Models
Cat. No.
Color
Coverage
Recommended
Application
LH-MT-W
White
Over 1000 sq. ft.
Office
LH-MT-I
Ivory
Over 1000 sq. ft.
Office
LH-MT-HL-W
White
Over 300 sq. ft.
Office*
LH-MT-HL-I
Ivory
Over 300 sq. ft.
Office*
*Hard lens unit; resistant to vandalism



Back to top

Ceiling Sensors

UNENCO ceiling sensors are available in several styles and variations to meet any application requirement. They are designed to cover from 500 sq. ft. up to 1200 sq. ft. using the latest technology available.

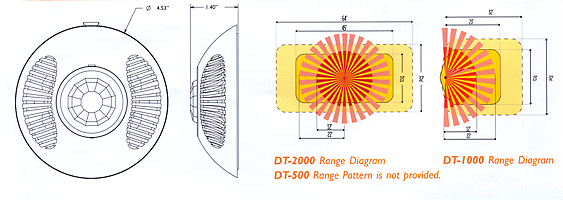

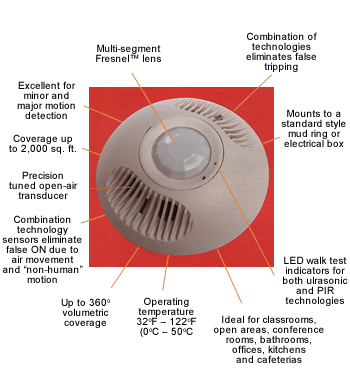

OMNI-DT/OMNI-DT-RP
(option RP) Multi-Technology

Application:
Fully adaptive, self-adjusting and self-calibrating the multi-technology OMNI-DT is the optimum sensor for difficult to control areas. Capable of discriminating between human and non-human motion, the OMNI-DT is ideal in areas that require minor motion control but have a dynamic motion environment. You will find spaces such as classrooms, partitioned offices, large private offices and computer labs are controlled accurately with the OMNI-DT.

Key Features:

  • Adaptive Technology: Self adjusting, Self calibrating

  • Non-volatile memory

  • 500, 1000, and 2000 sq. ft. coverage models

  • Field of view: 180o and 360o

  • 24V DC, 33mA

  • Adaptive timing: 4 to 32 minutes

  • Adaptive sensitivity; 0 to 100% (initial setting 75%)

  • Operating temperature: 32o to 104oF (0o to 40oC)

  • Humidity: 95% relative humidity, non-condensing

  • Ultrasonic operating frequency: 40kHz

  • Multi segment IR lens

  • One high sensitivity pyro-electric detector

  • LED motion indicators: Green – ultrasonic, Red – PIR

  • Housing is high impact injection molded ABS plastic

  • Manual override to "lights on"

  • "Aim-n-Lock" mounting base

  • Five year limited warranty

Options:

  • RP: SPDT, 500 mA rated @ 24V DC isolated relay, Photocell, 20–3000 LUX (2 to 300 foot candles)

Models
Cat. No.
Color
Coverage
Recommended
Application
OMNI-DT500
Off White
500 sq. ft.
Private Office
OMNI-DT500-RP
Off White
500 sq. ft.
Private Office
OMNI-DT1000
Off White
1000 sq. ft.
Open Office
OMNI-DT1000-RP
Off White
1000 sq. ft.
Open Office
OMNI-DT2000
Off White
2000 sq. ft.
Open Office
OMNI-DT2000-RP
Off White
2000 sq. ft.
Open Office

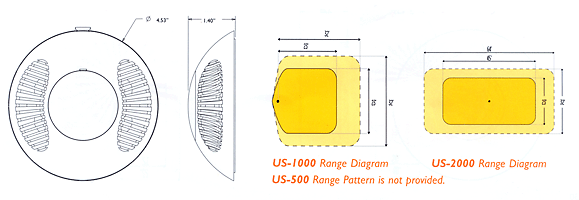

OMNI-US/OMNI-US-RP
(option RP) Ultrasonic

Application:
Fully adaptive, self-adjusting and self-calibrating OMNI-US is the optimum sensor for use in areas with minor motion. Capable of discriminating between human and non-human motion the OMNI-US is ideal in areas that require minor motion detection and/or have obstructions to line of sight sensing. You will find spaces such as partitioned offices and restrooms are controlled accurately with the OMNI-US.

Key Features:

  • Adaptive Technology: Self adjusting, Self calibrating

  • Non-volatile memory

  • 500, 1000, and 2000 sq. ft. coverage models

  • Field of view: 180 and 360o

  • 24V DC, 33mA

  • Adaptive timing: 4 to 32 minutes

  • Adaptive sensitivity: 0 to 100% (initial setting 75%)

  • Operating temperature: 32o to 104oF (0o to 40oC)

  • Humidity: 95% relative humidity, non-condensing

  • LED motion indicators: Green – ultrasonic

  • Housing is high impact injection molded ABS plastic

  • Manual override to "lights on"

  • "Aim-n-Lock" mounting base

  • Five year limited warranty

Options:

  • RP: SPDT, 500 mA rated @ 24V DC isolated relay, Photocell, 20–3000 LUX (2 to 300 foot candles)

Models
Cat. No.
Color
Coverage
Recommended
Application
OMNI-US500
Off White
500 sq. ft.
Hallway/restroom
OMNI-US500-RP
Off White
500 sq. ft.
Hallway/restroom
OMNI-US1000
Off White
1000 sq. ft.
Hallway/restroom
OMNI-US1000-RP
Off White
1000 sq. ft.
Hallway/restroom
OMNI-US2000
Off White
2000 sq. ft.
Hallway/restroom
OMNI-US2000-RP
Off White
2000 sq. ft.
Hallway/restroom



Back to top

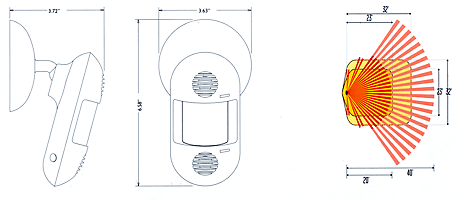

Wall Mount Sensors

Wall mount passive infrared sensors are designed to maintain the aesthetic appeal of a location. They are available in several styles and fields of view including specific designs for hallways, corridors, aisleways and open office areas. Other models are also available for use in harsh environments and outdoor applications as well as in locations normally subject to extreme cold such as freezers and refrigerators.

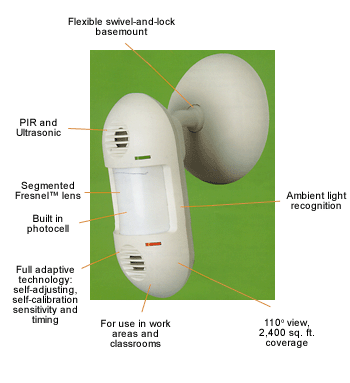

LightOWL™ LO-DT/LO-DT-RP
(option RP) Multi-Technology

Application:
Fully adaptive, self-adjusting and self-calibrating, the multi-technology LO-DT is the optimum sensor for difficult to control areas. Capable of discriminating between human and non-human motion, the LO-DT is ideal in areas that require minor motion control but have a dynamic motion environment. Spaces such as classrooms and computer labs are controlled accurately with the LO-DT.

Key Features:

  • Adaptive Technology: Self adjusting, Self calibrating

  • Non-volatile memory

  • 1600 sq. ft. coverage

  • Field of view: 110o

  • 24V DC, 33mA

  • Adaptive timing: 4 to 32 minutes

  • Adaptive sensitivity: 0 to 100% (initial setting 75%)

  • Operating temperature: 32o to 104oF (0o to 40oC)

  • Humidity: 95% relative humidity, non-condensing

  • Ultrasonic operating frequency: 40kHz

  • Multi segment IR lens

  • One high sensitivity pyro-electric detector

  • LED motion indicators: Green – ultrasonic, Red – PIR

  • Housing is high impact injection molded ABS plastic

  • Manual override to "lights on"

  • "Aim-n-Lock" swivel mounting base

  • Five year limited warranty

Options:

  • RP: SPDT, 500 mA rated @ 24V DC isolated relay, Photocell, 20–3000 LUX (2 to 300 foot candles)

Models
Cat. No.
Color
Coverage
Recommended
Application
LO-DT
White
1600 sq. ft.
Offices, Classrooms
LO-DT-RP
White
1600 sq. ft.
Offices, Classrooms

LightOWL™ LO-DIA/LO-DIA-RP
(option RP) Acoustic and Infrared

Application:
Fully adaptive, self-adjusting and self-calibrating, the multi-technology LO-DIA combining passive infrared (PIR) and acoustic technology is the optimum sensor for difficult to control areas. Capable of discriminating between human and non-human motion, the LO-DIA is ideal in areas with obstructions to line of sight sensing. You will find spaces such as libraries and odd shaped rooms suit the LO-DIA's technolgies perfectly.

Key Features:

  • Adaptive Technology: Self calibrating

  • Non-volatile memory

  • 1600 sq. ft. coverage

  • Field of view: 110o

  • 24V DC, 33mA

  • Timing: 4 to 100 minutes

  • Sensitivity: 0 to 100% (factory setting 75%)

  • Operating temperature: 32o to 104oF (0o to 40oC)

  • Humidity: 95% relative humidity, non-condensing

  • One dynamic type microphone, acoustic detection

  • Multi segment PIR lens

  • One high sensitivity pyro-electric detector

  • LED motion indicators: Green – acoustic, Red – PIR

  • Housing is high impact injection molded ABS plastic

  • Manual override to "lights on"

  • "Aim-n-Lock" mounting base swivel mounting base, ceiling or wall

  • Five year limited warranty

Options:

  • RP: SPDT, 500 mA rated @ 24V DC isolated relay, Photocell, 20–3000 LUX (2 to 300 foot candles)

Models
Cat. No.
Color
Coverage
Recommended
Application
LO-DIA
White
1600 sq. ft.
Warehouses, Storage
LO-DIA-RP
White
1600 sq. ft.
Warehouses, Storage



Back to top

Steinel
The Most Reliable Motion Detection System Ever Designed

Steinel is a combination of style, function and reliability that will give you a system that is generations ahead of the competition. It takes the latest SMD technology and incorporates it into the sensing switch, and †features the IS140 sensor switch along with 9 decorative sensor fixtures to create an attractive and dependable system. In fact, all Steinel products carry a full three year functional warranty.

Steinel, the European leader in sensor products, offers features that are not available from any other source.

IS140
Motion Sensor Switch for existing or new lights

Exclusive Features:

  • 140° angle sensor with 130° horizontal and 65° vertical adjustment. Total detection zone coverage.

  • Digital high speed circuitry with microprocess manual override for consistent reliable service.

  • Dual (2) surge protection assures uninterrupted service.

  • No minimum load feature allows use with alarms, bells, video cameras, fluorescent lights and other electrical appliances up to 600 watts.

  • The unique molded lens design not only makes NightGUARDIAN the most accurate sensor in the world, it is UL list raintight. It is weatherproof, rainproof and rustproof.

  • The IS140 will operate in daylight as well as total darkness and can be mounted in a remote location from the lights. A truly unique product.

  • Lifetime warranty.

  • Made in Germany.

Steinel IS140 Is For:

  • Safety

  • Convenience

  • Energy Savings

  • Crime Deterrent

  • Residential and Commercial Applications

  • Indoor Uses

  • Outdoor Uses

  • Existing Lights

  • New Lights

  • Existing Flood Lights

  • New Flood Lights

  • Can be mounted near or away from fixtures

  • 600 Watt Switching Capacity

  • No Minimum Load Requirement

  • Built-in Surge Protection

  • UL Raintight

  • Three year functional warranty

All Steinel Sensor Products Feature:

  • 140 degree detection angle with to 40' distance

  • 130 degree horizontal adjustment creating a 270 degree sweep

  • 65 degree vertical adjustment

  • Exclusive sneak by guard

  • Daylight operation if required

  • Clip on shrouds to pinpoint zone

  • Fresnel™ detection lens with graduated viewing windows

  • SMD electronic automated technology

  • Splash-proof, rain-tight

  • No Minimum Load Requirement

Steinel Sensor Fixtures Feature

All of the above, plus

  •  9 beautiful Euro design fixtures

  • Incandescent, fluorescent and halogen lamp compatibility

  • Hand blown glass globes

Steinel technology has eliminated the need for:

  • Pulse delay

  • Manual override

  • Range control

  • Seasonal adjustments

  • Warm up time

  • Minimum Load Requirement
